Custom round optical windows for protection and precision light transmission.
Product Overview

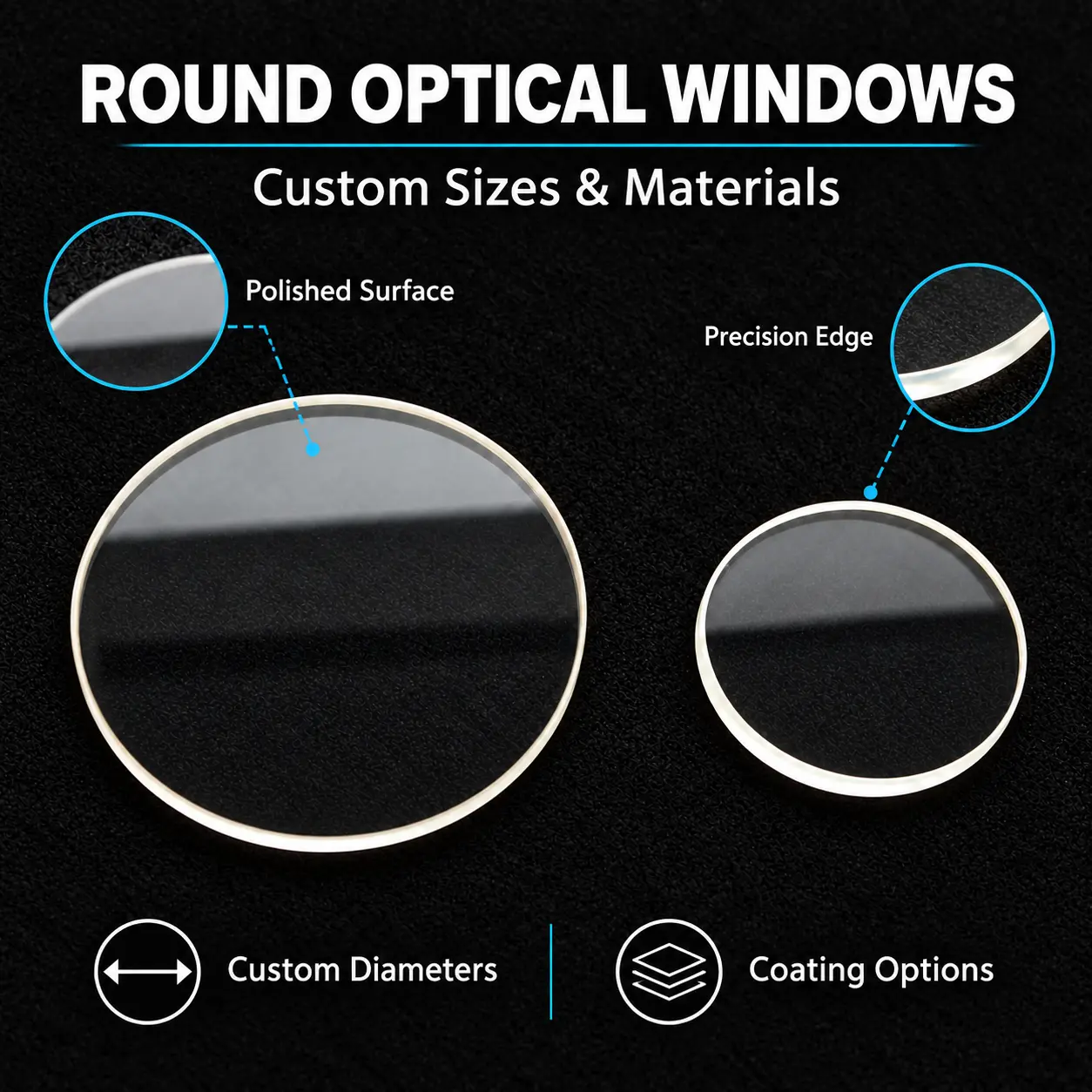

Round optical windows are circular plates with two polished, nominally parallel faces.
They transmit light through a protective barrier without intentionally focusing or diverging the beam.
Material, diameter, thickness, surface flatness, parallelism, and antireflection coatings can be specified to suit the drawing and operating wavelength.
Applications
- Industrial Cameras: A window at the camera housing aperture protects internal optics from dust while allowing image capture.
- Laser Processing Heads: A replaceable cover window in the beam delivery head shields the focusing optics from process debris.
- Optical Sensors: A window in the sensor housing provides an optical entrance for emitted or received light.
- Laboratory Instruments: A window closes an optical access port while transmitting the measurement beam.
Typical Specifications
| Parameter | Standard Grade | Precision Grade |
|---|---|---|
| Materials | N-BK7, Quartz, CaF₂, MgF₂, ZnSe, ZnS, and other optical glass upon request | N-BK7, Quartz, CaF₂, MgF₂, ZnSe, ZnS, and other optical glass upon request |
| Dimensions | Ø3–300 mm or side length 3–300 mm | Ø3–300 mm or side length 3–300 mm |
| Diameter Tolerance | +0 / −0.10 mm | +0 / −0.02 mm |
| Length and Width Tolerance | ±0.10 mm | ±0.02 mm |
| Thickness Tolerance | ±0.10 mm | ±0.02 mm |
| Parallelism | ≤3′ | ≤2″ |
| Surface Figure (P–V) | ≤λ/4 @ 632.8 nm | ≤λ/10 @ 632.8 nm |
| Surface Quality (Scratch–Dig) | 40–20 | 20–10 |
| Surface Roughness (Ra) | ≤1.0 nm | ≤0.3 nm |
| Clear Aperture | ≥85% of overall dimensions | ≥90% of overall dimensions |
| Coating | AR / HR, etc., to customer requirements | AR / HR, etc., to customer requirements |
Other specifications, materials, and coatings are available upon request.
