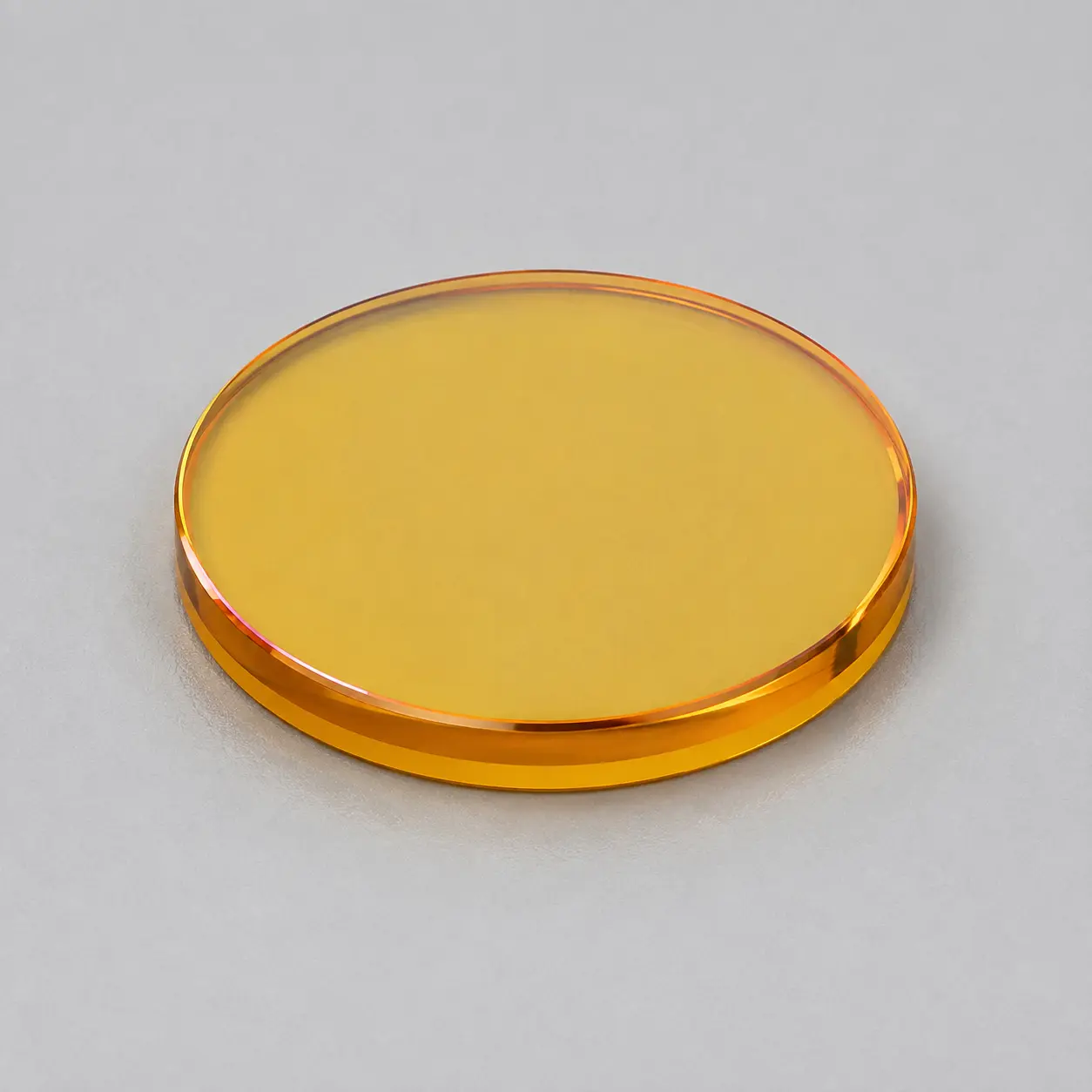

Request a quote Infrared Windows
Custom infrared windows in ZnSe, ZnS, silicon, germanium, sapphire and fluoride crystals for thermal imaging, IR sensing and laser systems.
Typical Specifications
| Material | ZnSe |
|---|---|
| Dimensional Tolerance | +0.0 / −0.1 mm |
| Thickness Tolerance | ±0.1 mm |
| Surface Flatness | λ/4 @ 632.8 nm |
| Parallelism | ≤2 arcmin |
| Surface Quality | 40-20 Scratch-Dig |
| Clear Aperture | >90% |
| Bevel | <0.2 mm × 45° |
| Coating | Custom AR Coatings Available |
Other specifications, materials, and coatings are available upon request.
