Precision optical prisms manufactured to customer specifications.
Product Overview

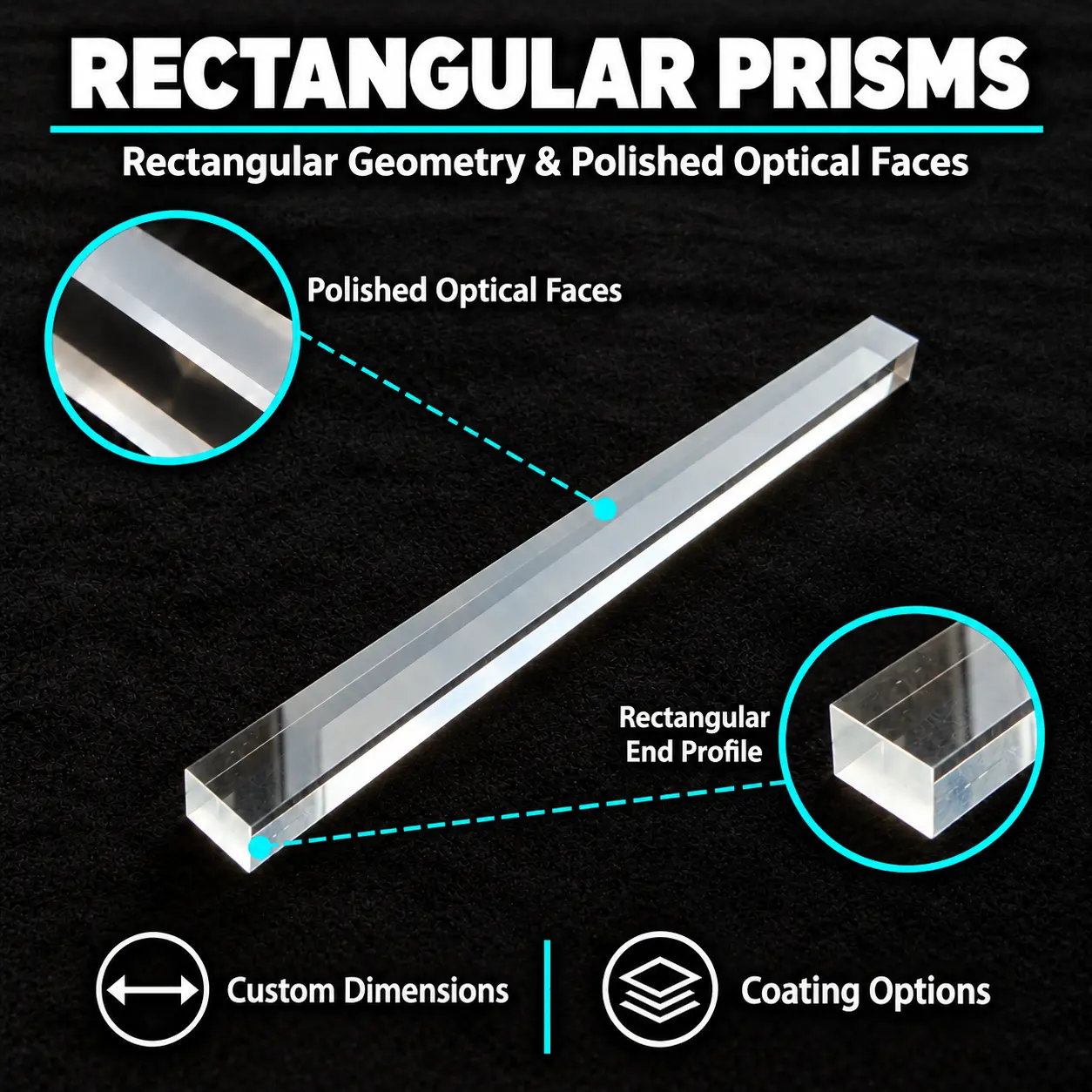

Rectangular optical prisms are transparent glass blocks or bars with flat rectangular faces and nominally parallel opposing surfaces.
Light transmitted through a pair of parallel faces acquires additional optical path length and, at oblique incidence, a lateral displacement.
Material, length, cross-section, face parallelism, squareness, surface flatness, surface quality and coatings can be specified to your drawings.
Applications
- Interferometer Optical Paths: A rectangular glass block introduces a specified glass path in one arm for optical path or dispersion compensation.
- Beam Positioning Modules: A rectangular block shifts a transmitted beam laterally when used at a prescribed oblique angle between parallel optical faces.
- Optical Test Benches: A rectangular optical block provides a defined thickness of glass for evaluating transmission and optical path effects.
Typical Specifications
| Parameter | Standard Grade | Precision Grade |
|---|---|---|
| Materials | N-BK7, Quartz, CaF₂, MgF₂, ZnSe, ZnS, and other optical glass upon request | N-BK7, Quartz, CaF₂, MgF₂, ZnSe, ZnS, and other optical glass upon request |
| Dimensions | 5–250 mm | 5–250 mm |
| Angle Tolerance | ±3′ | ±1″–±30″ |
| Surface Flatness | λ/4 @ 632.8 nm | λ/10 @ 632.8 nm |
| Surface Quality (Scratch–Dig) | 40–20 | 20–10 |
| Coating | AR / HR, etc., to customer requirements | AR / HR, etc., to customer requirements |
Other specifications, materials, and coatings are available upon request.
