Request a quote Hexagonal Prisms
Precision optical prisms manufactured to customer specifications.
Product Overview

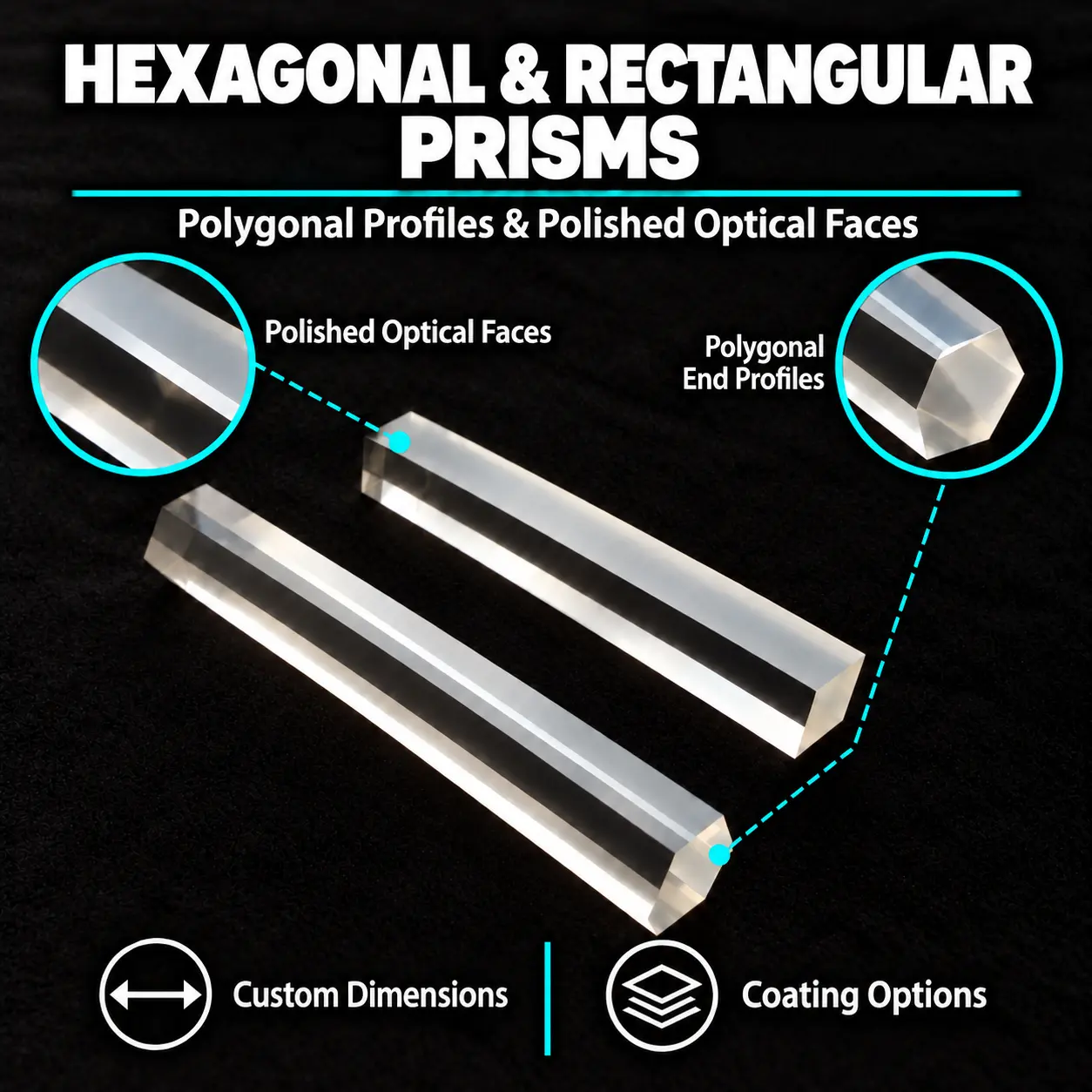

Hexagonal optical rods have an elongated six-sided cross-section with flat end faces and longitudinal side faces.
In a light-guide configuration, repeated total internal reflections can transport and mix light between the end faces when the input angles and surrounding medium meet the required conditions.
Material, rod length, cross-section, end-face geometry, side-face finish and end-face coatings can be specified to match your drawings.
Applications
- LED Illumination Modules: A hexagonal rod used as a light pipe mixes incoming rays before light is delivered to the illuminated area.
- Projection & Display Illumination: A hexagonal integrating rod redistributes source light before downstream illumination optics in a matched light-guide design.
- Optical Inspection Lighting: A hexagonal light-guide rod transports and mixes source light before the inspection illumination stage.
Typical Specifications
| Parameter | Standard Grade | Precision Grade |
|---|---|---|
| Materials | N-BK7, Quartz, CaF₂, MgF₂, ZnSe, ZnS, and other optical glass upon request | N-BK7, Quartz, CaF₂, MgF₂, ZnSe, ZnS, and other optical glass upon request |
| Dimensions | 5–250 mm | 5–250 mm |
| Angle Tolerance | ±3′ | ±1″–±30″ |
| Surface Flatness | λ/4 @ 632.8 nm | λ/10 @ 632.8 nm |
| Surface Quality (Scratch–Dig) | 40–20 | 20–10 |
| Coating | AR / HR, etc., to customer requirements | AR / HR, etc., to customer requirements |
Other specifications, materials, and coatings are available upon request.
