Plano-Convex Cylindrical Lenses

Custom cylindrical lenses for line focusing and one-axis collimation.

Product Overview

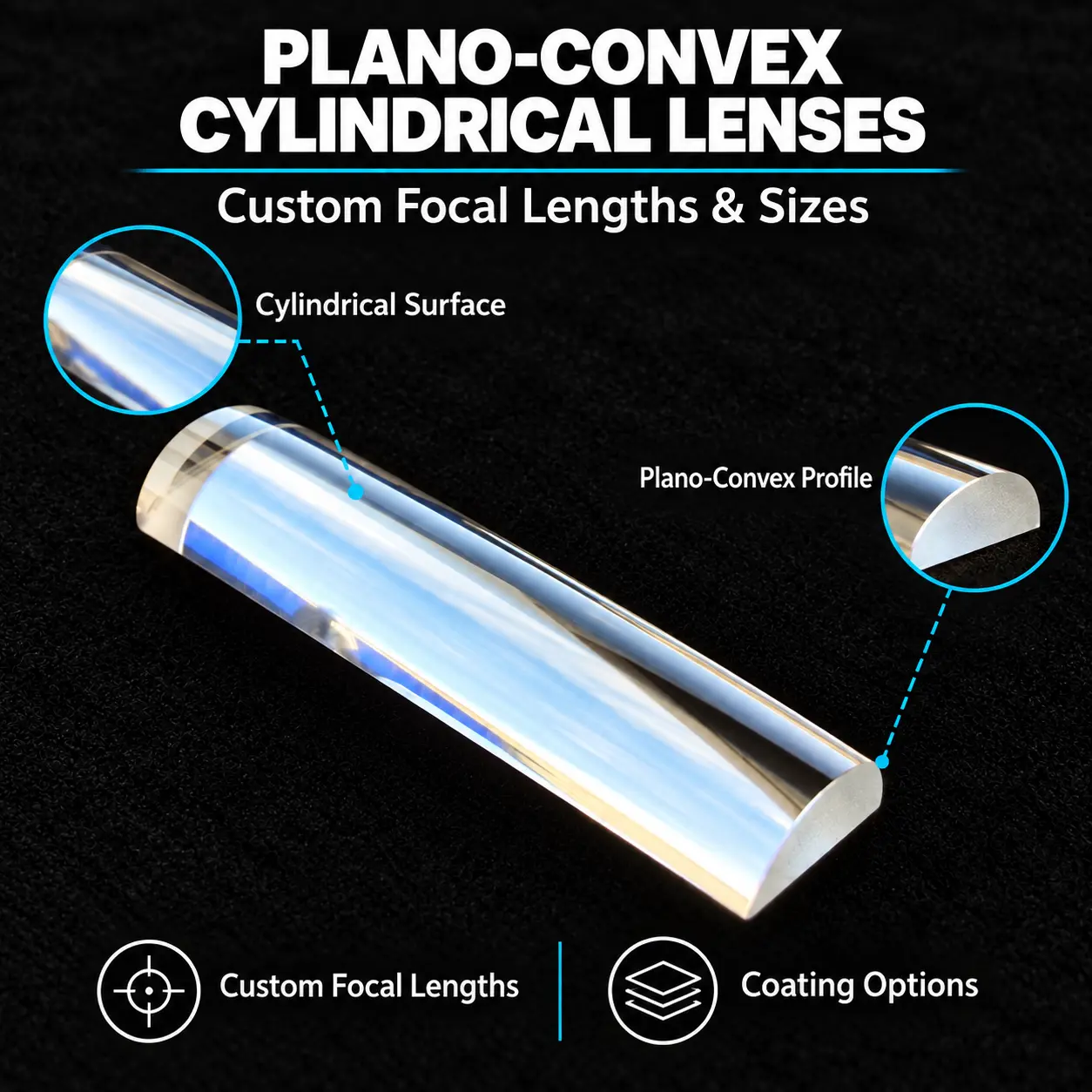

Plano-convex cylindrical lenses combine a flat surface with a convex cylindrical surface, providing positive power in one transverse direction.

They focus a collimated beam into a line rather than a point, or collimate a diverging beam in the powered direction.

Material, aperture, center thickness, cylindrical radii, axis orientation and coating requirements can be specified to your drawings, subject to manufacturing review.

Applications

Machine Vision & Surface Inspection: Focusing laser illumination into a line for profile measurement, surface inspection and alignment systems.
Laser Diode Modules: Collimating or resizing one axis of an elliptical laser beam as part of a matched cylindrical lens assembly.
Biomedical Research & Light-Sheet Microscopy: Focusing excitation light in one direction to form a sheet within a designed microscope illumination path.
Spectroscopy & Slit Illumination: Concentrating light in one direction to better match the elongated entrance slit of a spectrometer.
Industrial Optical Measurement: Producing line or sheet illumination for geometric measurement and optical alignment.

Typical Specifications

Parameter	Standard Grade	Precision Grade
Materials	N-BK7, Quartz, CaF₂, MgF₂, ZnSe, ZnS, and other optical glass upon request	N-BK7, Quartz, CaF₂, MgF₂, ZnSe, ZnS, and other optical glass upon request
Diameter	5–300 mm	5–300 mm
Diameter Tolerance	+0 / −0.10 mm	+0 / −0.02 mm
Center Thickness Tolerance	±0.10 mm	±0.02 mm
Radius of Curvature Tolerance	±0.5%–±1%	±0.1%
Surface Figure	λ/4 @ 632.8 nm	λ/10 @ 632.8 nm
Surface Quality (Scratch–Dig)	40–20	20–10 / 10–5
Surface Roughness (Ra)	≤1.0 nm	≤0.3 nm
Centration Error	<3′	<30″
Angle / Wedge	1′–5′	1″–10″
Coating	AR / HR, etc., to customer requirements	AR / HR, etc., to customer requirements

Other specifications, materials, and coatings are available upon request.
