Custom cemented lens assemblies for focusing and aberration control.
Product Overview

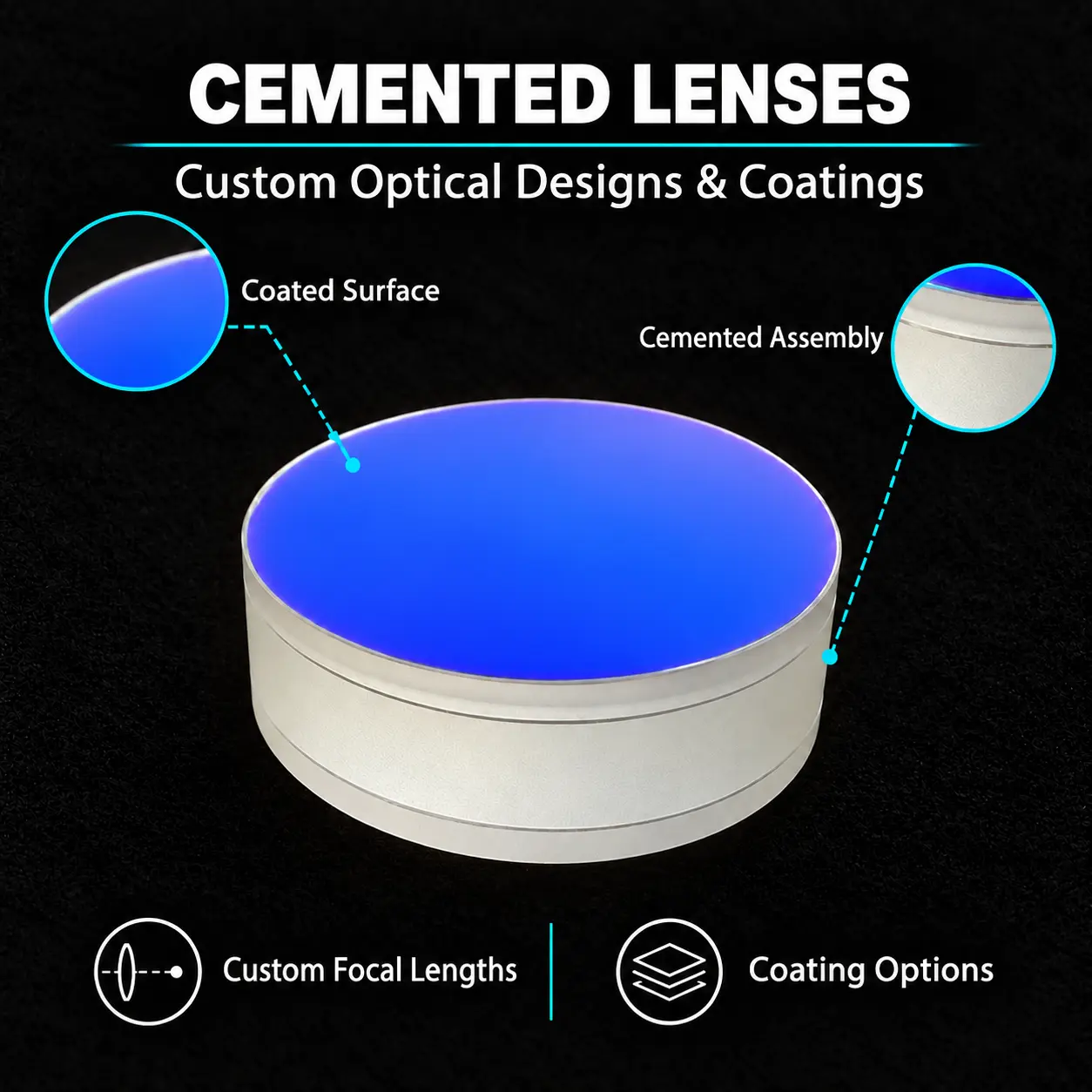

Cemented lenses consist of two or more optical elements bonded together at matching interfaces with optical adhesive.
The combined prescription controls focusing and aberrations; chromatic correction is achieved only when the materials and curvatures are designed for that purpose.
Glass combinations, element geometry, centration, adhesive requirements and external-surface coatings can be specified for manufacturing review.
Applications
- Medical & Fluorescence Instruments: Cemented groups designed as achromats can collect or focus light while reducing chromatic focal shift over the specified band.
- Microscopy & Image Relay: Cemented lens groups used to transfer images and manage aberrations within microscope or relay optical assemblies.
- Spectroscopy & Chemical Analysis: Achromatic cemented designs can focus multiple wavelengths toward a common plane in spectrometer collection or imaging paths.
- Industrial Imaging & Inspection: Compound lens elements within camera and inspection optics, with glass pairing and curvature chosen for the required image quality.
- Optical Detection Modules: Bonded lens groups that combine optical powers in a single assembly for focusing or relaying light to detectors.
Typical Specifications
| Parameter | Standard Grade | Precision Grade |
|---|---|---|
| Materials | N-BK7, Quartz, CaF₂, MgF₂, ZnSe, ZnS, and other optical glass upon request | N-BK7, Quartz, CaF₂, MgF₂, ZnSe, ZnS, and other optical glass upon request |
| Diameter | 5–300 mm | 5–300 mm |
| Diameter Tolerance | +0 / −0.10 mm | +0 / −0.02 mm |
| Center Thickness Tolerance | ±0.10 mm | ±0.02 mm |
| Radius of Curvature Tolerance | ±0.5%–±1% | ±0.1% |
| Surface Figure | λ/4 @ 632.8 nm | λ/10 @ 632.8 nm |
| Surface Quality (Scratch–Dig) | 40–20 | 20–10 / 10–5 |
| Surface Roughness (Ra) | ≤1.0 nm | ≤0.3 nm |
| Centration Error | <3′ | <30″ |
| Angle / Wedge | 1′–5′ | 1″–10″ |
| Coating | AR / HR, etc., to customer requirements | AR / HR, etc., to customer requirements |
Other specifications, materials, and coatings are available upon request.
