Request a quote K9 / BK7 Optical Dome
Product Overview

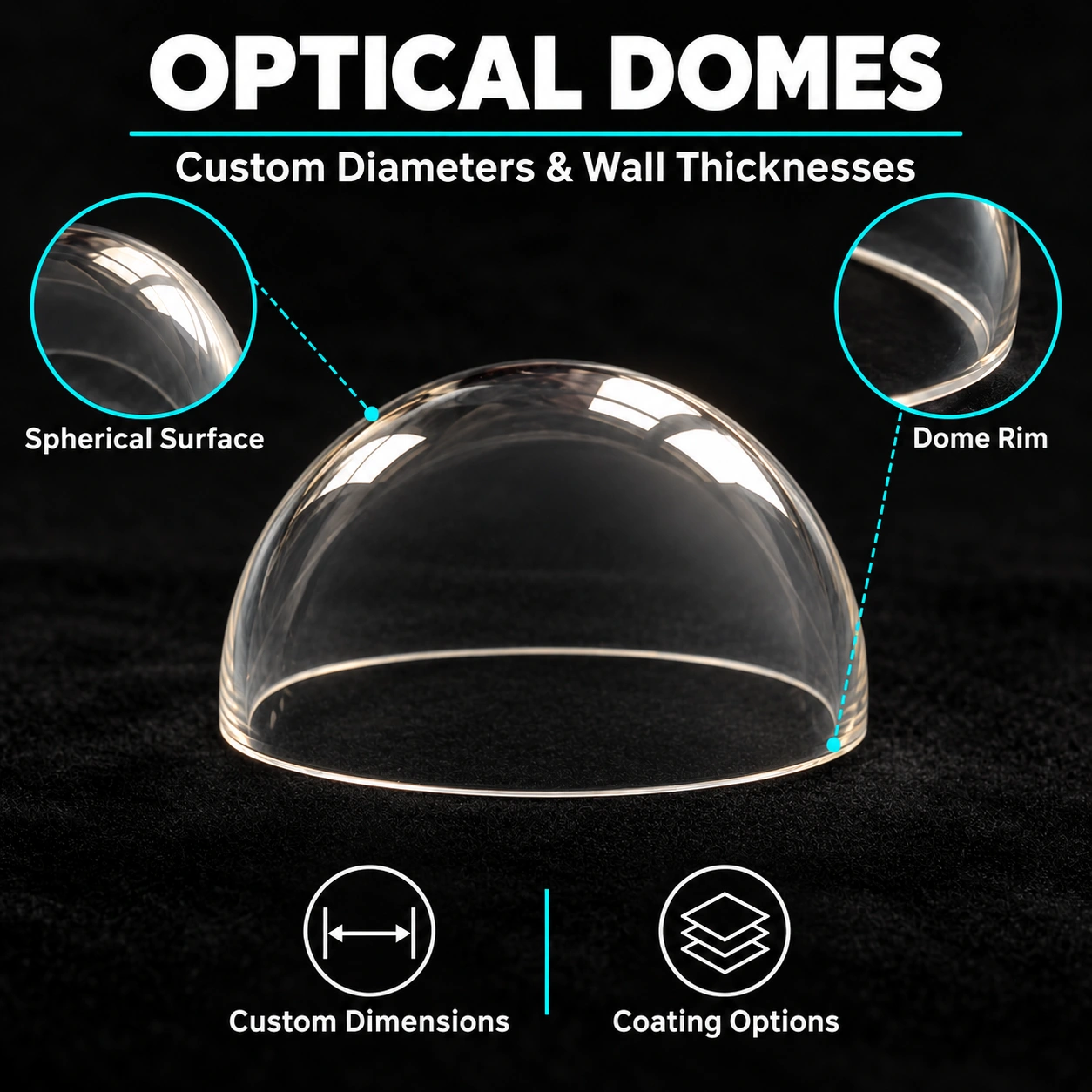

Optical domes are hollow optical components with curved inner and outer spherical surfaces and a circular opening.
They provide a protective optical interface while allowing light to pass through over a wide range of viewing angles.
Materials, diameters, dome heights, wall thicknesses, surface quality, and coatings can be customized to meet specific requirements.
Applications
- Underwater Imaging: Used as protective dome ports for underwater cameras and imaging systems, helping maintain a wide field of view.
- Surveillance & Monitoring: Protects camera optics in panoramic surveillance and environmental monitoring systems.
- Optical Sensors: Provides a curved protective window for sensors that receive light from multiple directions.
- Scientific Instruments: Used in optical measurement and experimental systems requiring a protective spherical interface.
Typical Specifications
| Parameter | Standard Grade | Precision Grade |
|---|---|---|
| Materials | K9 / BK7 optical glass | K9 / BK7 optical glass |
| Outer Diameter | Custom, per drawing | Custom, per drawing |
| Diameter Tolerance | ±0.10 mm | ±0.05 mm |
| Dome Height | Custom, per drawing | Custom, per drawing |
| Height Tolerance | ±0.10 mm | ±0.05 mm |
| Wall Thickness | Custom, per drawing | Custom, per drawing |
| Wall Thickness Tolerance | ±0.10 mm | ±0.05 mm |
| Inner / Outer Radius | Custom, per drawing | Custom, per drawing |
| Radius Tolerance | ±0.5% | ±0.1% |
| Concentricity (Inner / Outer Spheres) | ≤0.05 mm | ≤0.02 mm |
| Surface Irregularity (PV, each surface) | λ/2 @ 632.8 nm | λ/4 @ 632.8 nm |
| Surface Quality (Scratch–Dig) | 60–40 | 40–20 |
| Coating | Uncoated / AR / BBAR, to customer requirements | Uncoated / AR / BBAR, to customer requirements |
Proposed typical specifications are subject to manufacturing review and confirmation against your drawing. Surface irregularity refers to each surface, with the inspection region, curvature removal and test method to be agreed; it does not represent transmitted wavefront error. Other specifications, materials, and coatings are available upon request.
