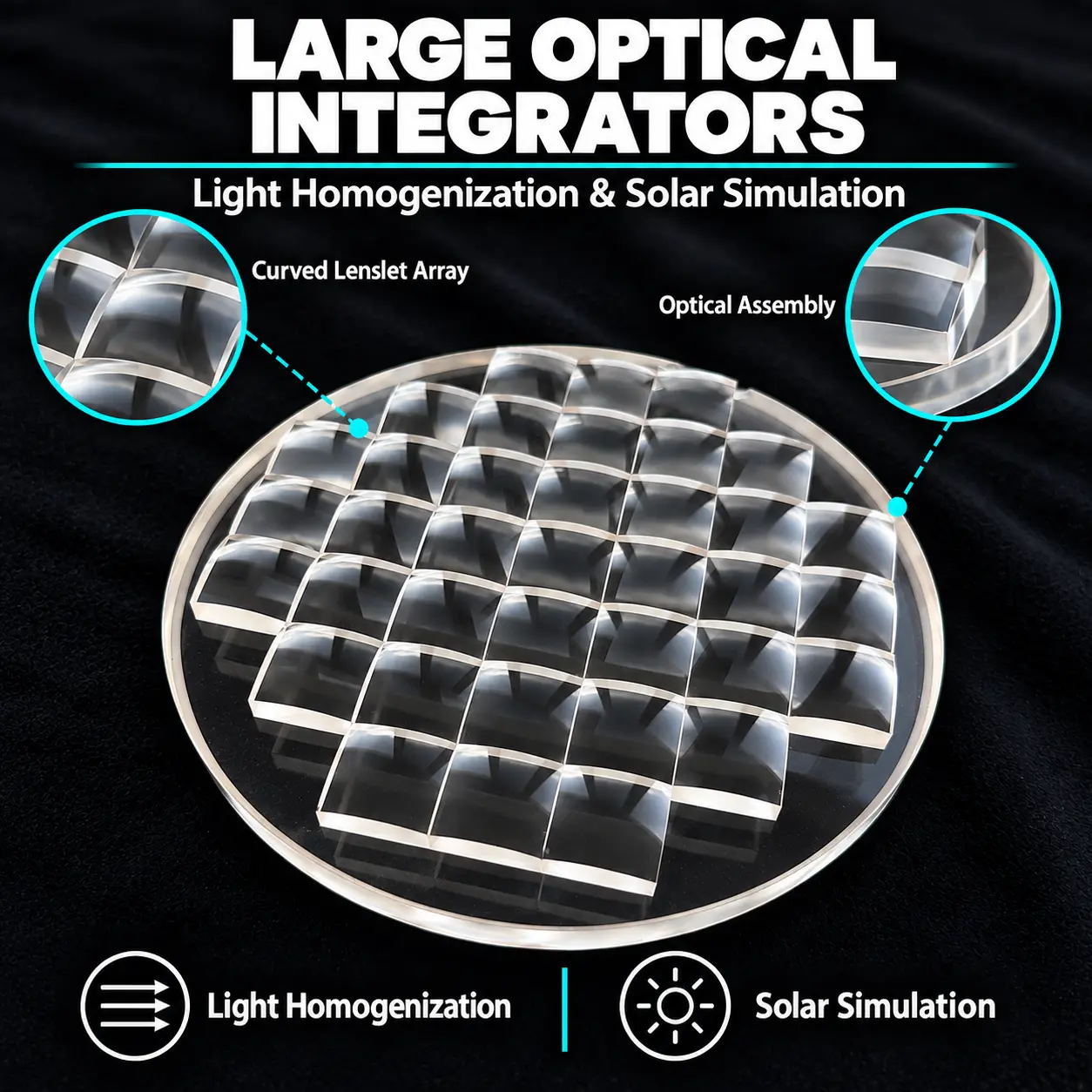

Request a quote Optical Homogenizer
Applications
- Solar Simulators: Homogenizes light from xenon lamps, LEDs and other sources to produce uniform illumination for simulated sunlight systems.
- Photovoltaic Testing: Used in solar cell and PV module testing equipment for uniform irradiance across the test area.
- Environmental & Material Testing: Suitable for solar radiation, aging and weathering test systems requiring consistent light distribution.
- Optical & Sensor Testing: Provides uniform illumination for cameras, imaging sensors, detectors and other optical measurement systems.
- Scientific & Laboratory Systems: Used in spectroscopy, illumination calibration and custom optical setups requiring high-uniformity light fields.
Typical Specifications
| Material | JGS1 / BK7 / JGS3 / H-K9L |
|---|---|
| Diameter | Ø200 mm |
| Diameter Tolerance | −0.05 mm / +0.0 |
| Thickness Tolerance | ±0.1 mm |
| Surface Power | N ≤ 1 fringe |
| Local Irregularity | ΔN ≤ 0.3 fringe |
| Parallelism | ≤ 2 arcsec |
| Surface Quality | 40-20 Scratch-Dig |
| Clear Aperture | ≥ 90% |
| Bevel | < 0.2 mm × 45° |
| Coating | AR Coating |
