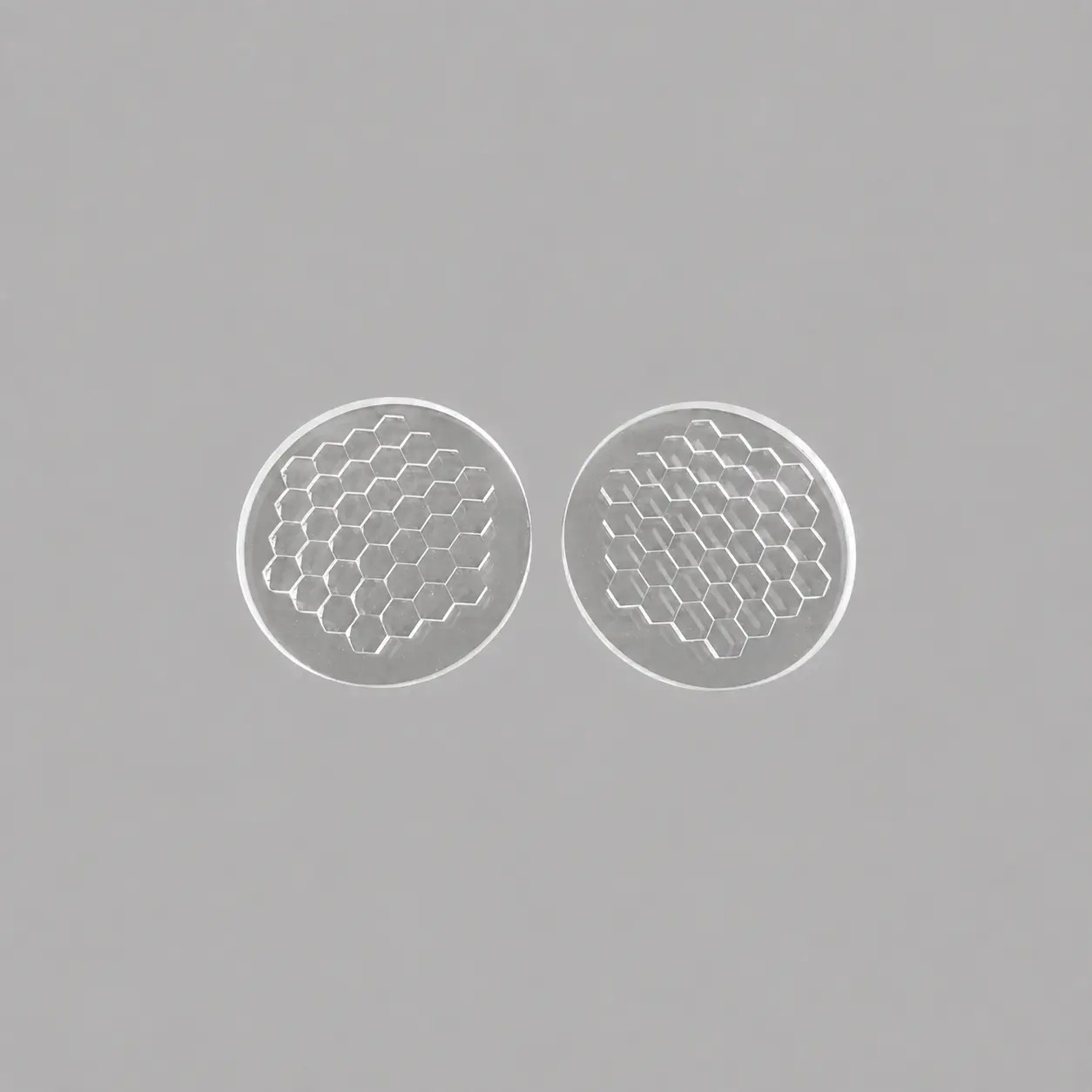

Request a quote Optical Integrators
Precision optical integrators for illumination homogenization.
Typical Specifications
| Material | JGS1 / N-BK7 / JGS3 / H-K9L |
|---|---|
| Diameter Tolerance | +0.00 / −0.05 mm |
| Thickness Tolerance | ±0.1 mm |
| Surface Power | 1 fringe |
| Local Irregularity | 0.3 fringe |
| Parallelism | ±2 arcsec |
| Surface Quality | 40-20 Scratch-Dig |
| Clear Aperture | >90% |
| Bevel | <0.2 mm × 45° |
| Coating | Custom AR Coatings Available |
Other specifications, materials, and coatings are available upon request.
